Programmable Robot Car Kit for Arduino Profesional ESP32 Cam Solar Tracking and Charging Set DIY Electronics Project Robotic Kit

Description

Purchase Note:
This kit is without batteries, and the battery is sold separately, and the battery type is 18650 3.7v, with no capacity limit, there is a link for downloading instructions, if you can’t find it, please do not hesitate to contact us.

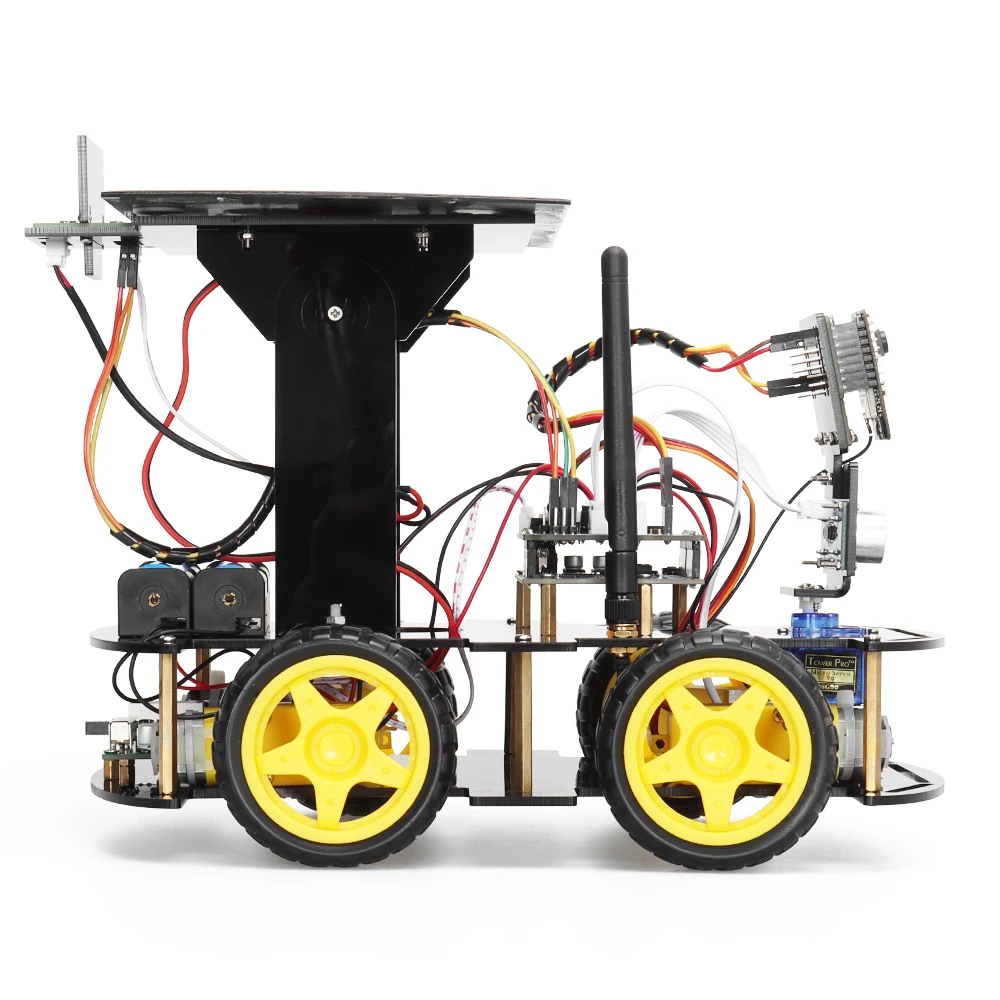

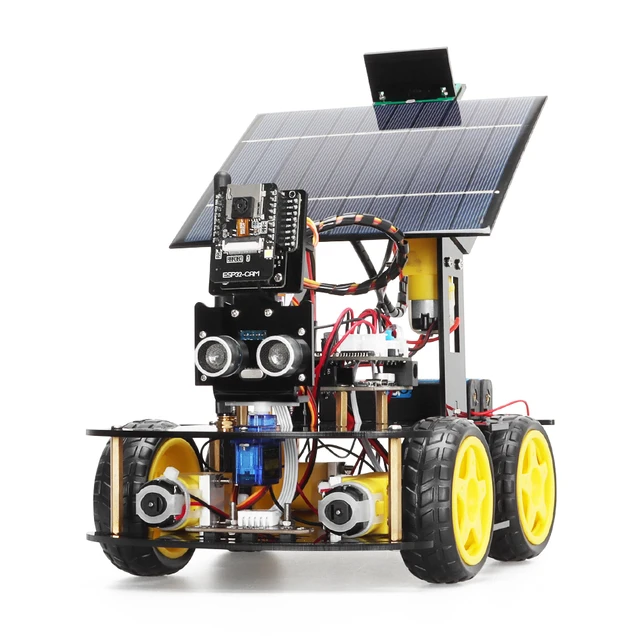

ESP32 CAM Solar Smart Robot Car Kit
Effortless Wireless Video Control
With the ESP32 CAM WiFi module, you can effortlessly control and monitor your Arduino programmable robotic kit from your cell phone or PC, using real-time video streaming for seamless remote control.

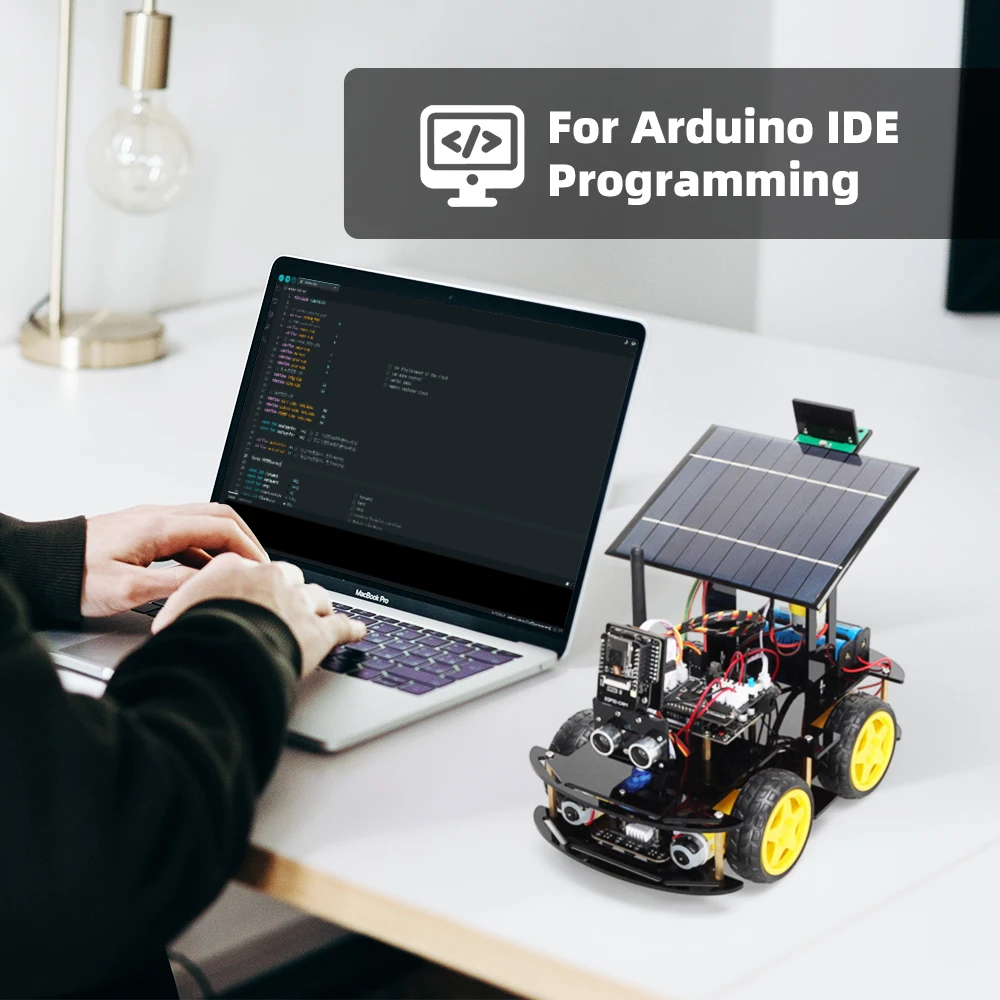

Endless Creativity with Arduino Programming
Your robotic kit is Arduino programmable, opening the doors to endless creative possibilities. Develop custom code and explore various applications, from educational projects to advanced robotics endeavors.

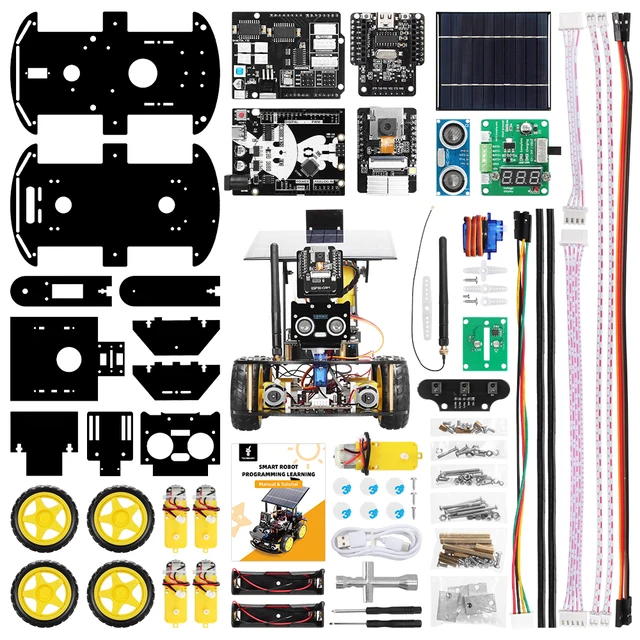

Comprehensive Assembly Manual
We provide a detailed assembly manual to accompany your kit. It guides you step by step through the assembly process, ensuring a smooth and frustration-free setup, even for those new to robotics.
Expandability Beyond Limits
Our product offers high extension capabilities, allowing you to customize and expand your Arduino programmable robotic kit for a wide range of applications. The possibilities are limited only by your imagination.
Solar Charging for Sustainable Power
Our kit comes equipped with a 5V solar charging function, harnessing the energy of the sun to charge your 18650 battery, providing a renewable and eco-friendly power source for your devices or projects.
More Detailed Description

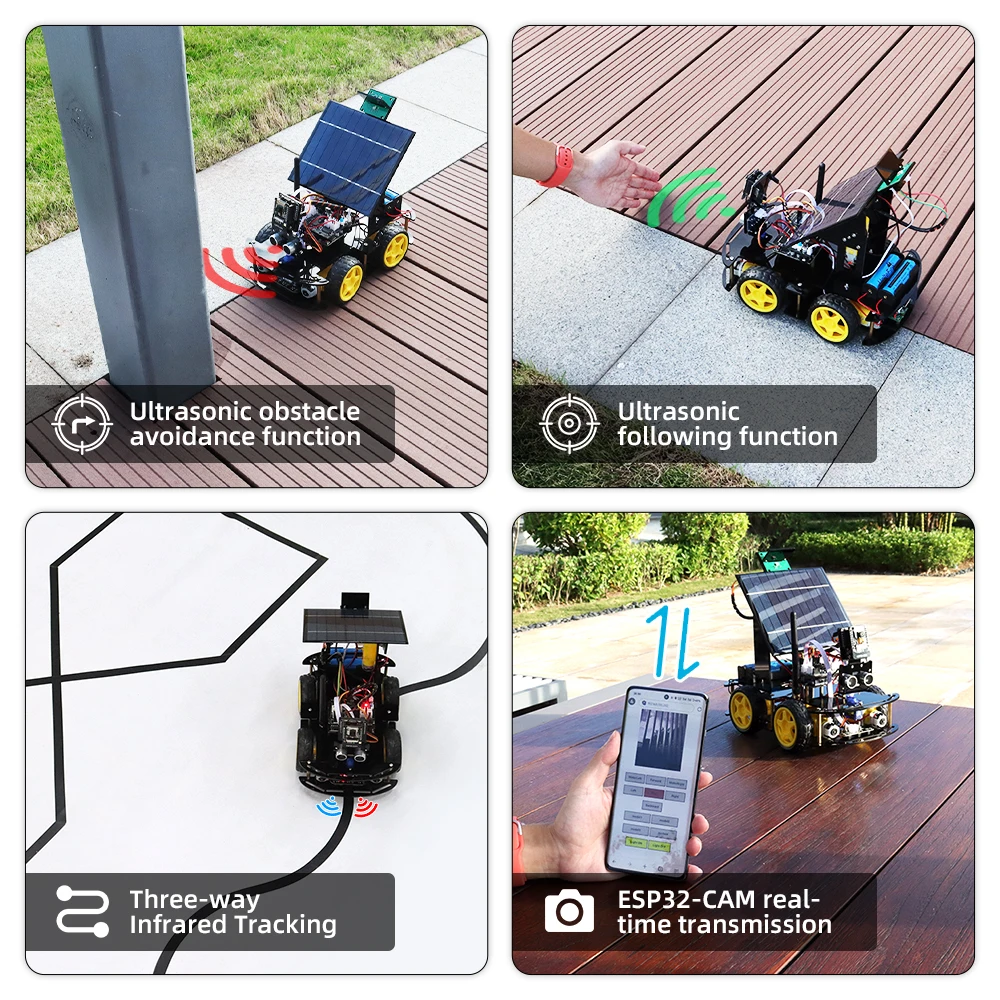

*01. Configured with a three-way high-precision tracking module, no need to adjust; fully meets the introductory patrol function learning.
*02. Ultrasonic detection module and servo with the servo steering drive ultrasonic module to scan around the obstacles, through the calculation of the left, in front of the right side of the three directions of the distance of the obstacles, the realization of obstacle avoidance and automatic bypassing, not only learning ultrasonic ranging but also learning the knowledge of the servo PWM signal control.
*03. Using the ultrasonic module ranging principle, measure the palm in front of the body distance position, plus program algorithms to let the palm sensors intelligent car automatically follow the forward or backward.
*04. Realize ESP32 CAM by connecting to the network through a web APP, and having LED lighting function on the main control board.
*05. Connect the external antenna through the web APP so that the wifi transmission and reception signals are greatly enhanced; ESP32 CAM camera module to realize real-time transmission of images from the camera, and you can use your cell phone to remotely control the direction of the car.
*06. 5V solar charging PTZ utilizes the principle of a photosensitive resistor combined with a solar charging module to realize the charging function for the 18650 battery of the smart cart.
*07. Equipped with a digital display voltmeter, and real-time voltage monitoring, when the voltage is lower than 6V through the fluctuation switch, start the solar charging module to charge a single 18650 battery, to avoid battery scrap due to low voltage.
