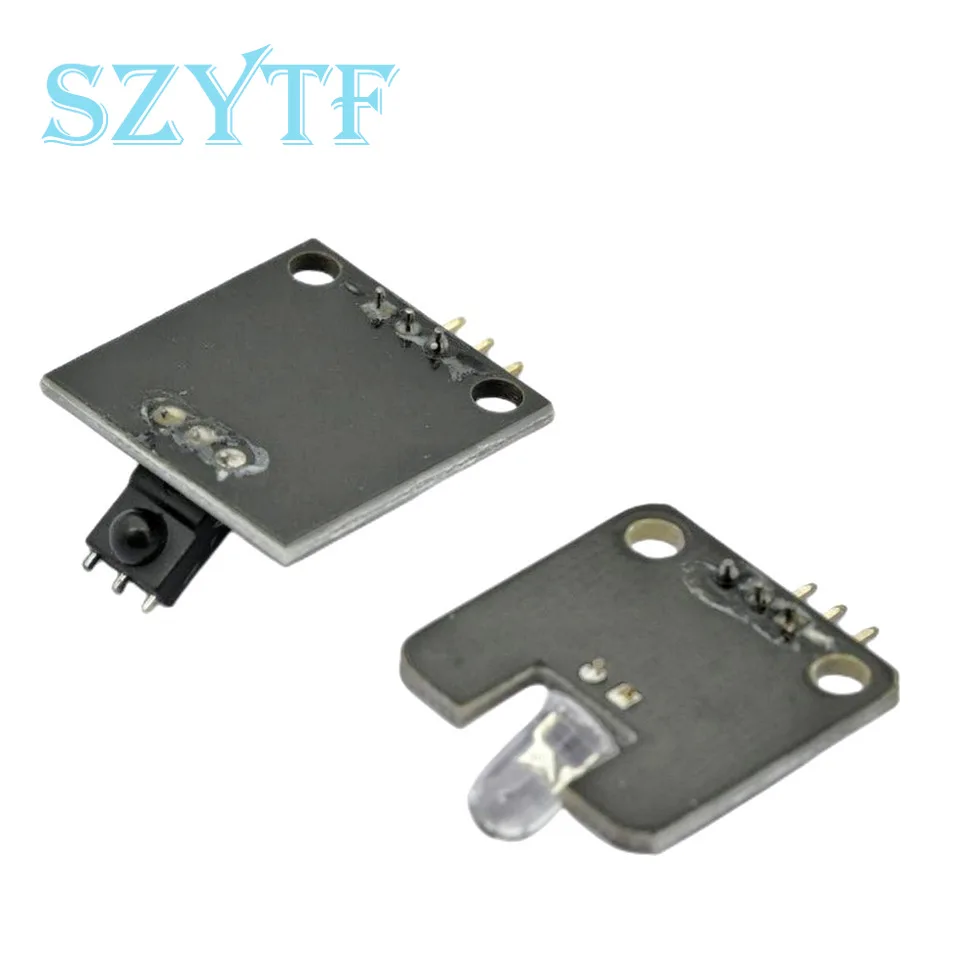

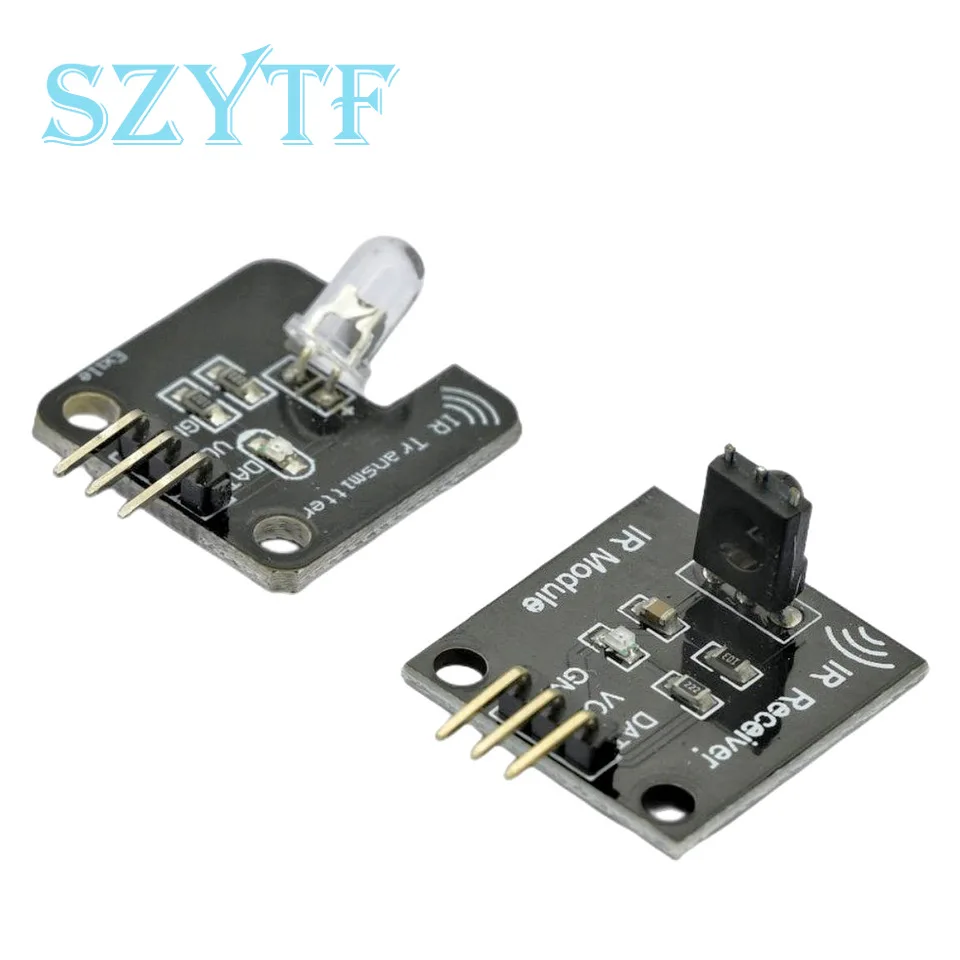

IR Infrared Transmitter Module Ir Digital 38Khz Infrared Receiver Sensor Module For Arduino Electronic Building Block
$3.08 – $3.64
Description

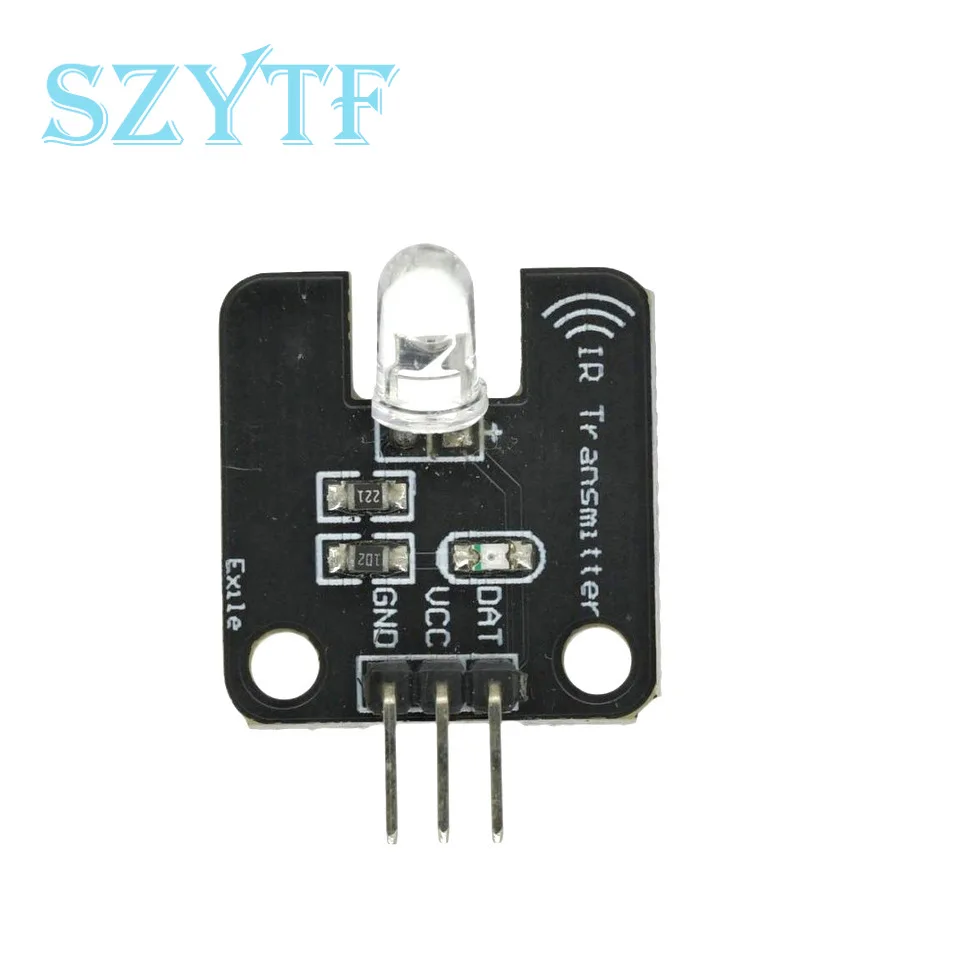

1. Infrared emission module:
Supply voltage: 5V
Working environment: -25~+85C
Storage temperature: – 30! 10OC
Wavelength: 940mm
Signal type: Digital signal
Infrared central wavelength: About 850nm-940nm
Infrared emission distance: About 1.3 m (5V 38khz)
Infrared emission Angle: About 20 degrees
Module weight: 1.5 g
Modules only store: 23.5 * 20.8 mm
Positioning hole size: 3mm

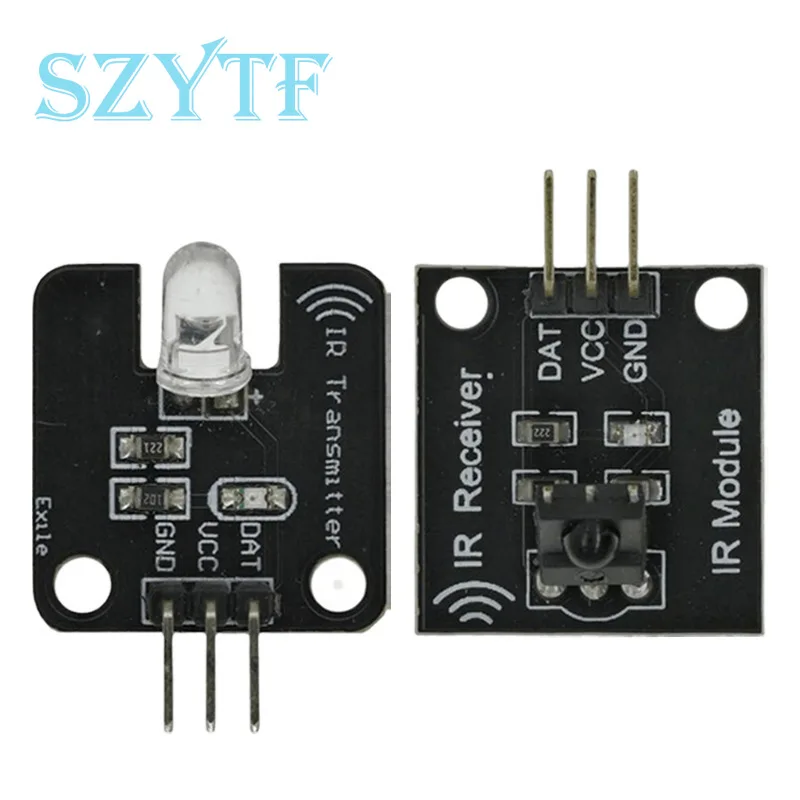

Wiring instructions:
DAT: indicates the digital output interface
VCC: positive terminal of the 5VDC power supply
GND: The negative pole of the 5VDC power supply

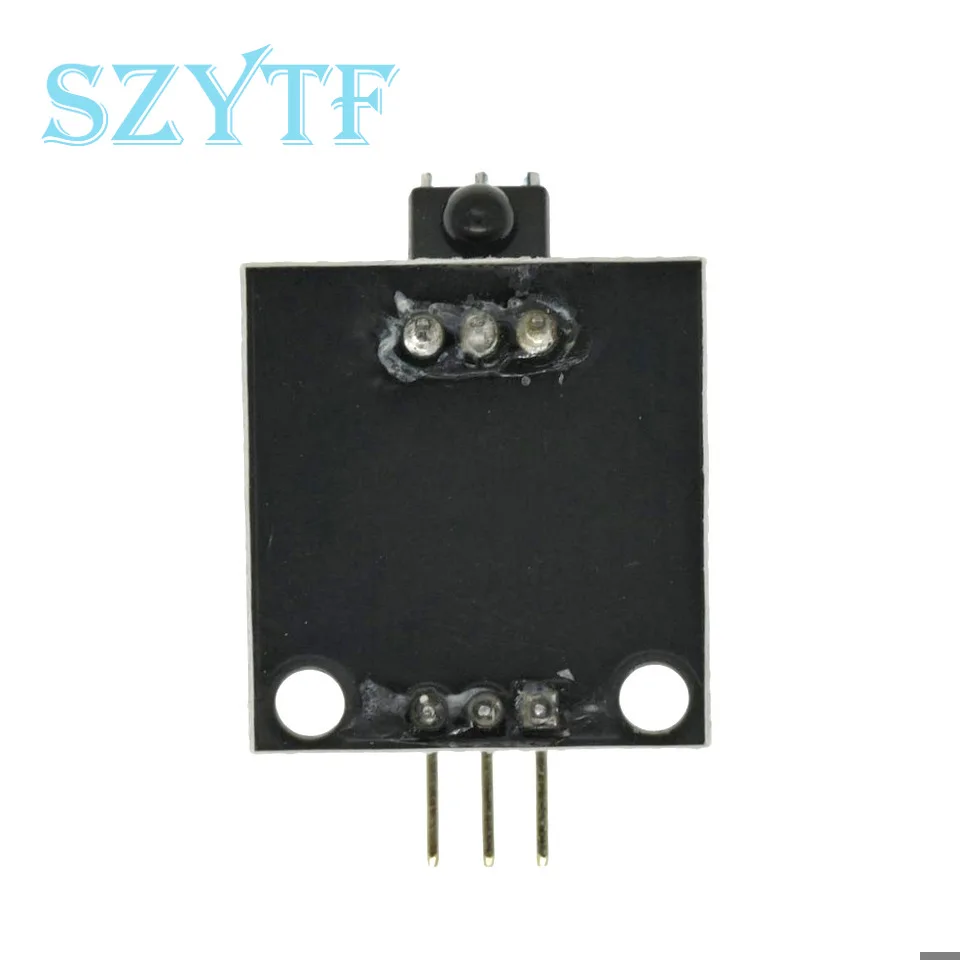

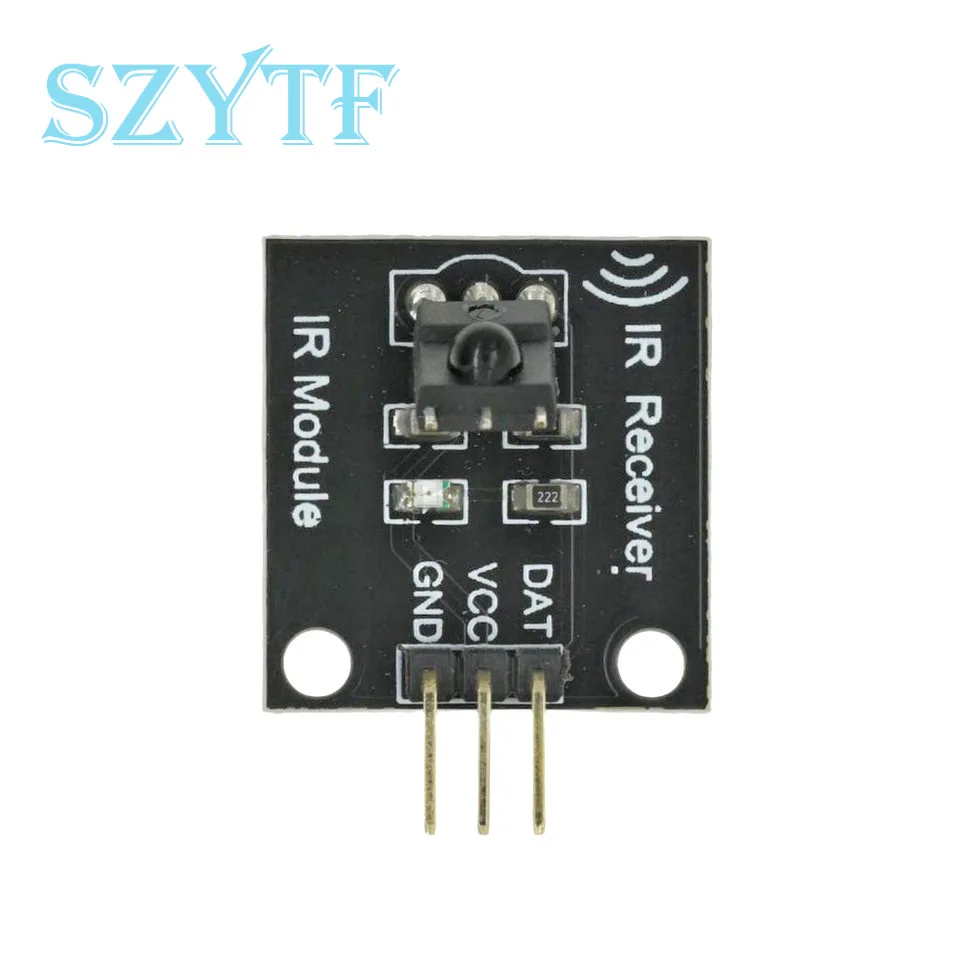

2. Infrared receiving module:
Supply voltage: 5V
Working environment: -25~+85C
Storage temperature: – 30! 100C
Carrier frequency: 940mm
Signal type: Digital signal
Infrared emission distance: About 10 meters
Infrared emission Angle: About 35 degrees
Module weight: 1.5 g
Modules only store: 23.5 * 20.8 mm
Positioning hole size: 3mm
Wiring instructions:
DAT: digital output interface
VCC: positive terminal of the 5VDC power supply
GND: The negative pole of the 5VDC power supply
Additional information
| Weight | 0.006 lbs |
|---|---|
| Dimensions | 12 × 11 × 1 in |
| Hign-concerned Chemical | None |
| is_customized | Yes |
| Model Number | Infrared Transmitter Receiver Se |
| Operating Temperature | n/a |
| Dissipation Power | n/a |
| Supply Voltage | n/a |
| Application | Computer |
| Condition | New |
| Type | Module |
| Brand Name | SZYTF |
| Origin | Mainland China |
