DC 5V Ultrasonic Nebulizer Module Sprayer DIY Humidifier Electronic Board with LED Light TYPE-C Interface

Description

Features:
1. Using 1.2mm FR-4 material, the circuit board design is reasonable and has a long service life.
2. Upgrade TYPE-C interface, with strong universality, large fog output, stable performance, easy to use, and easy to operate.
3. Easy to use, with a rainbow dual spray humidification module and colorful lighting that creates a more atmospheric atmosphere.
4. The module set is ready to install and use, with each module paired with a bracket and cotton swab, making assembly simple.
5. Micron atomization, which atomizes water into fine water molecules through micropores and disperses them into the air.

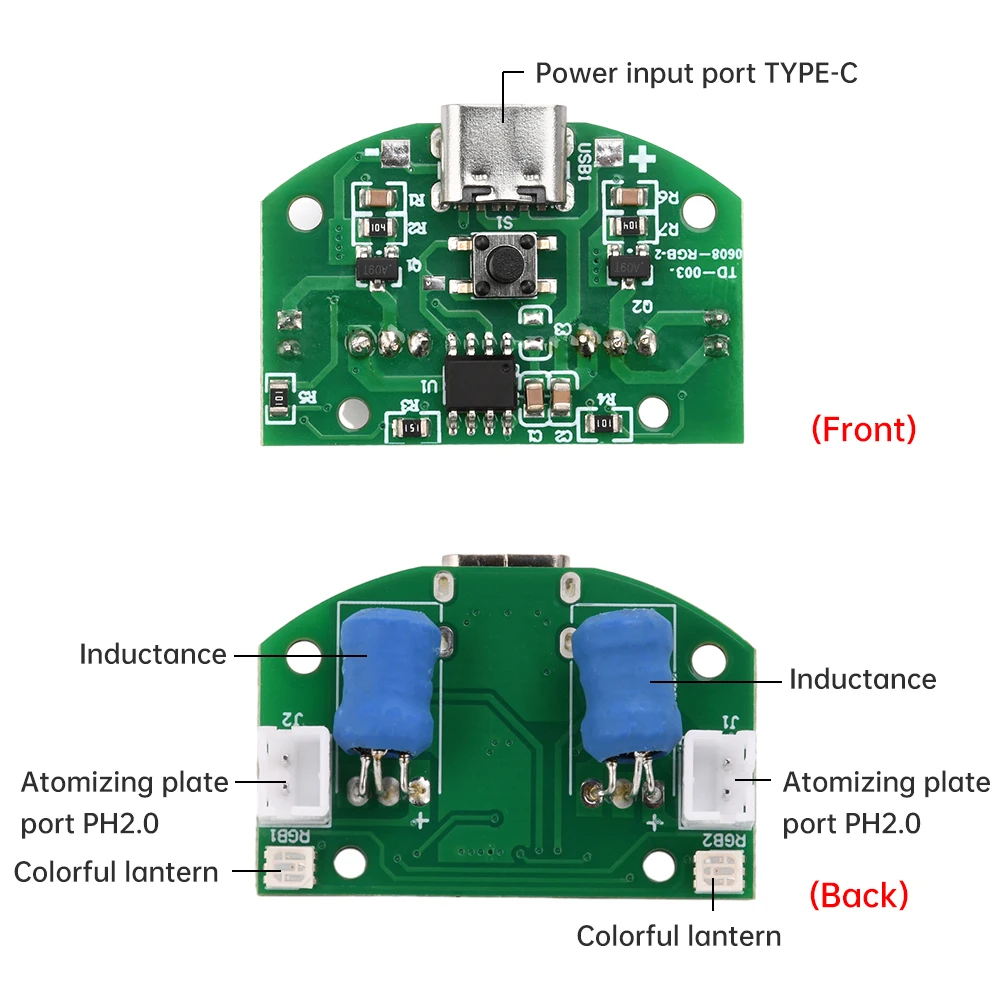

Parameter:
Name: Colorful Double spray Module
Material: 1.2mm FR-4
Power input port: TYPE-C port
Rated voltage: DC5V (power supply)
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ ﾱ 2KHZ
Aperture: 2.3mm
Module: 34 * 22.5mm
Bracket: 25 * 38MM
Cotton swabs: 8 * 100mm, 7 * 121mm

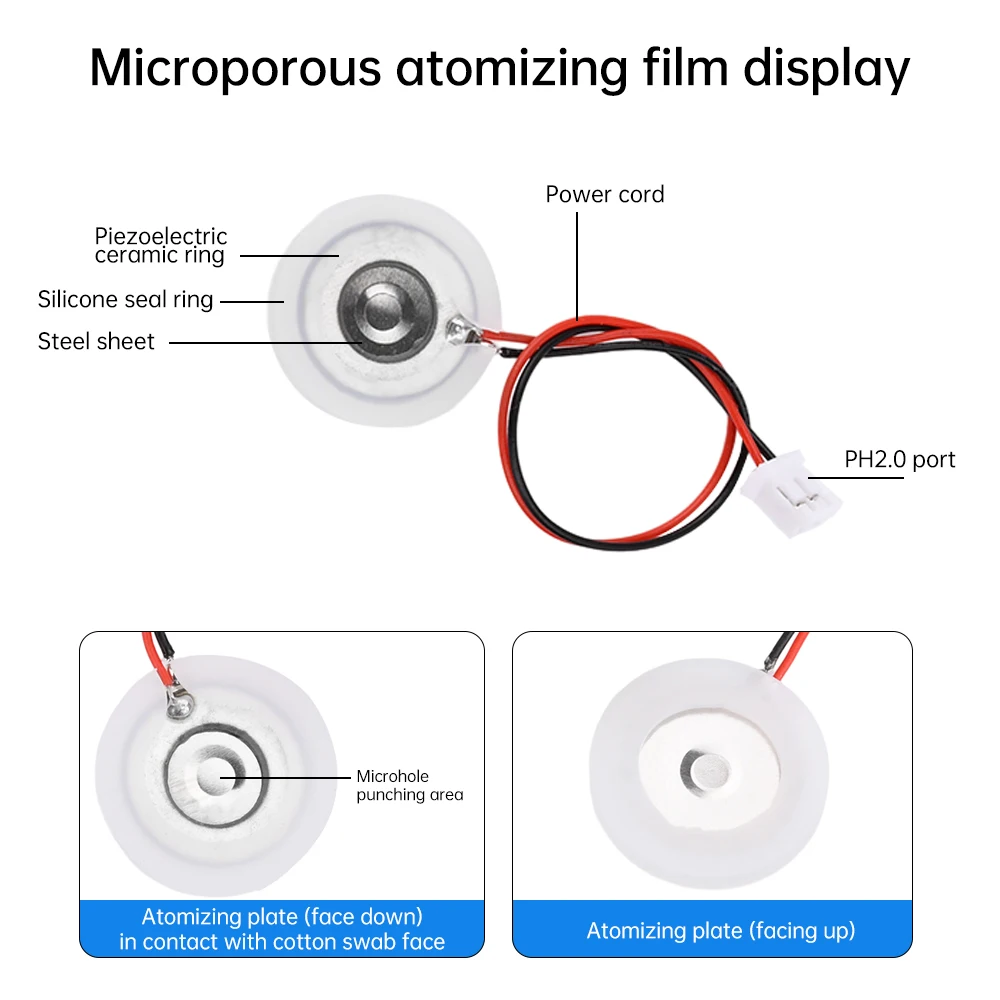

Atomization parameters:
Name: Microporous Atomization Sheet
Drive voltage: 5V
Resonant frequency: 108-110KHz ﾱ 5
Rated power: 2W
Number of perforations: 1100
Aperture: 4-5UM
Silicone sleeve outer diameter: 20MM
Rubber ring thickness: 3MM
Steel plate diameter: 16mm
Line length: 100MM
Wire terminal: PH2.0
Spray mode:

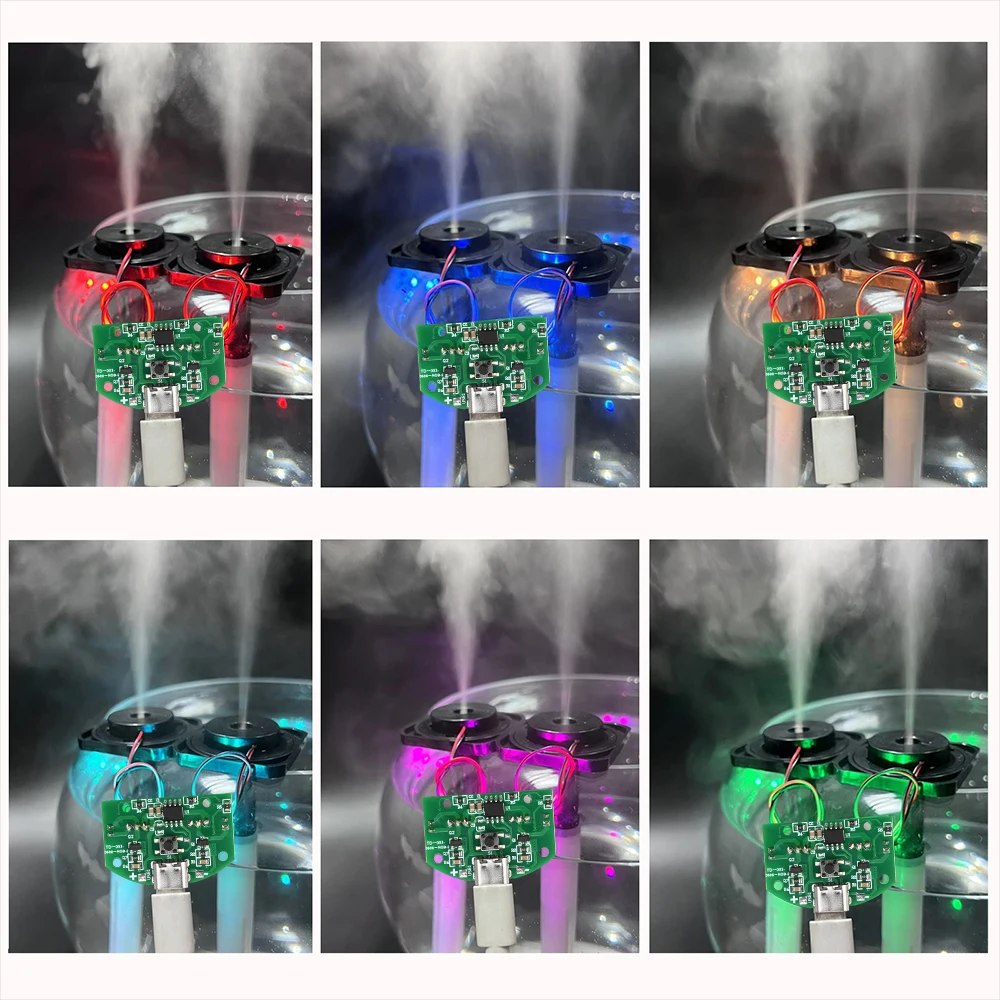

Continuous color light spray mode: press the first switch, colorful gradual change light, double spray continuous spray mode, spray all the time, spray three hours later, automatic shutdown protection.
Continuous single light spray mode: press the switch for the second time, the white light is always on, the double spray continuous spray mode, the double spray has been atomizing, and three hours after spray, the automatic shutdown protection.
Alternate spray mode: press the switch for the third time, and the blue light is always on. Alternate spray mode: spray on one side for 10 seconds, then spray on the other side for 10 seconds, and cycle in sequence. After spray for eight hours, it will automatically shut down for protection.
Shutdown: Press the switch for the fourth time to shut down.
Adjust fog volume mode:
In each spray mode, if you need to adjust the fog amount, do the following: press the switch for 3 seconds, after the LED green light is on, you can adjust the fog amount. Press the switch once to select the fog amount (large, medium, small), return to the upper mode and press the switch for 3 seconds.
usage method:

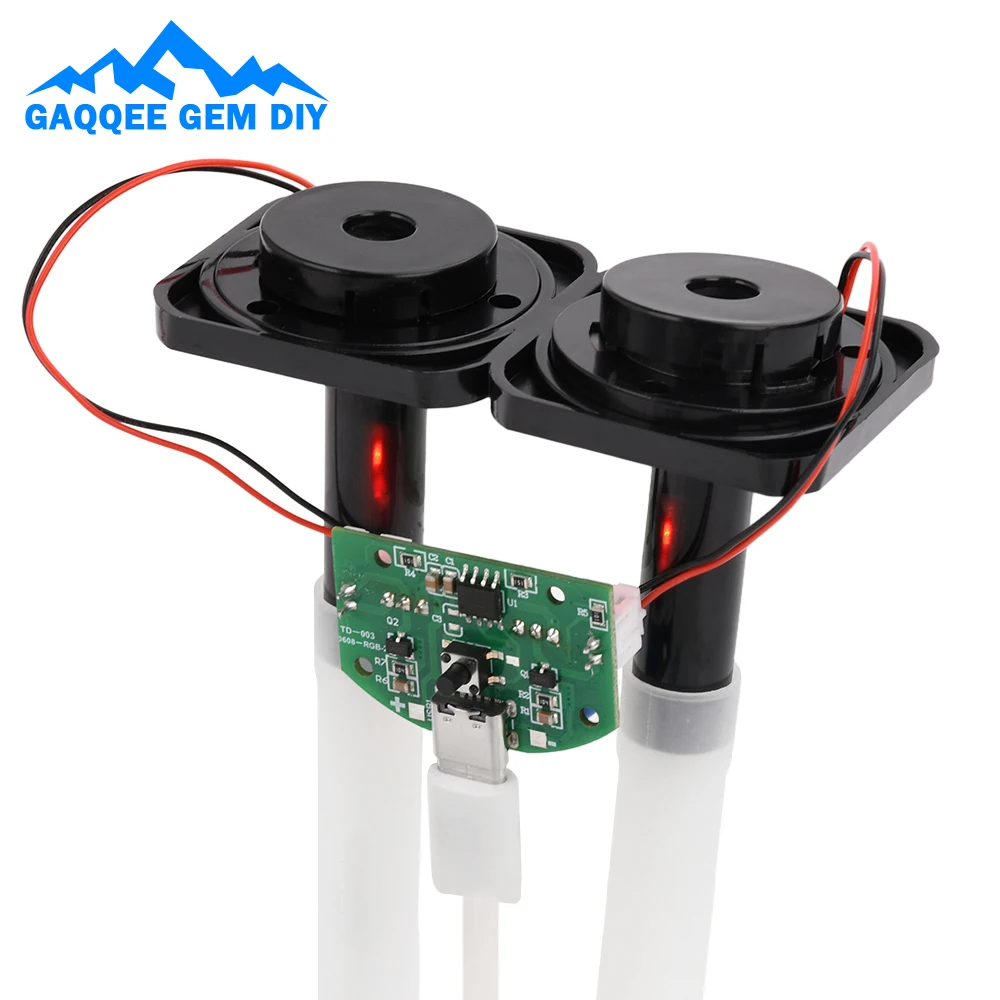

1. First, install the atomizer bracket and cotton swab
2. Connect the atomizing plate to the module atomizing plate port
3. Connect the power supply to the module power port again
4. Press the power switch
5. Spray when the atomizer meets water
matters needing attention:
1. It is strictly prohibited to puncture the atomizing plate, and the welding points of the atomizing plate cannot be folded or pulled
2. It is strictly prohibited to power on without connecting the atomizing plate
3. It is strictly prohibited to use fast chargers
4. It is strictly prohibited to modify modules
5. The module must not touch water
6. The all steel sheet (raised surface) contacts the cotton swab downwards to absorb water
7. Rated power input

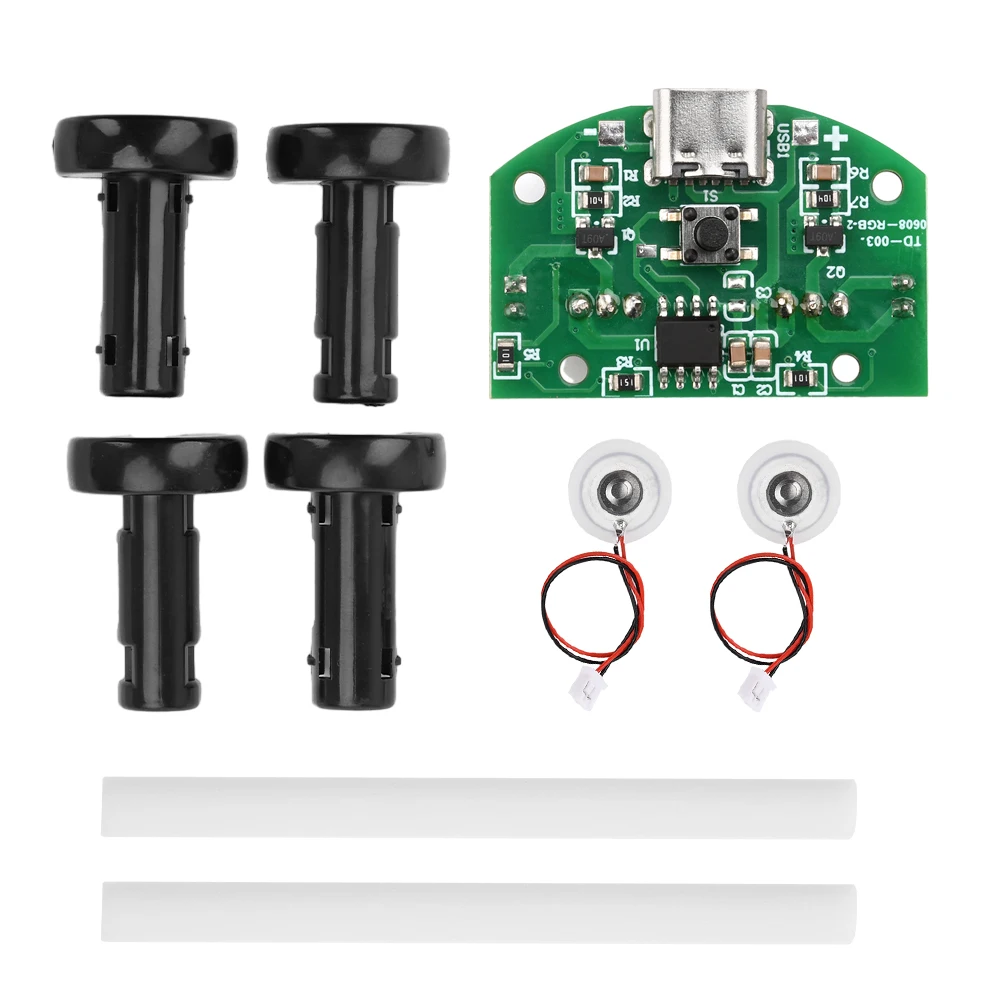

Package include:
1X module
2X cotton swab
2X bracket

2X atomizing sheet
